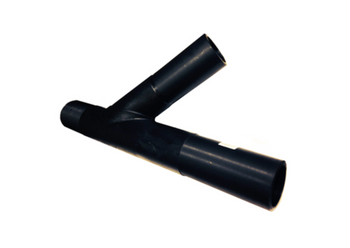

2" IPS SDR11 Molded Butt Fusion Lateral Wye
SPECIAL NOTE: The wye outlet side on these fittings cannot be fused using butt fusion machines larger than 2" capacity. This fitting can be butt fused using a McElroy 2LC or 2CU Fusion Machine. It cannot be fused using larger equipment because the machine clamps do not have enough clearance. These butt fusion wyes can also fused using socket fusion couplings or electrofusion couplings as an alternative to butt fusion if you do not have access to a suitable butt fusion machine.
Made of PE4710 Resin
Fully Pressure Rated - PE3408/PE4710
AWWA C901, C906, F1055, GAS ASTM D2513, CEC
Material conforms to NSF61 for potable water
Application: Water, Sewer, Gas, Geothermal, and other industrial applications
Note: Long Style 2" lateral Wyes are also available.

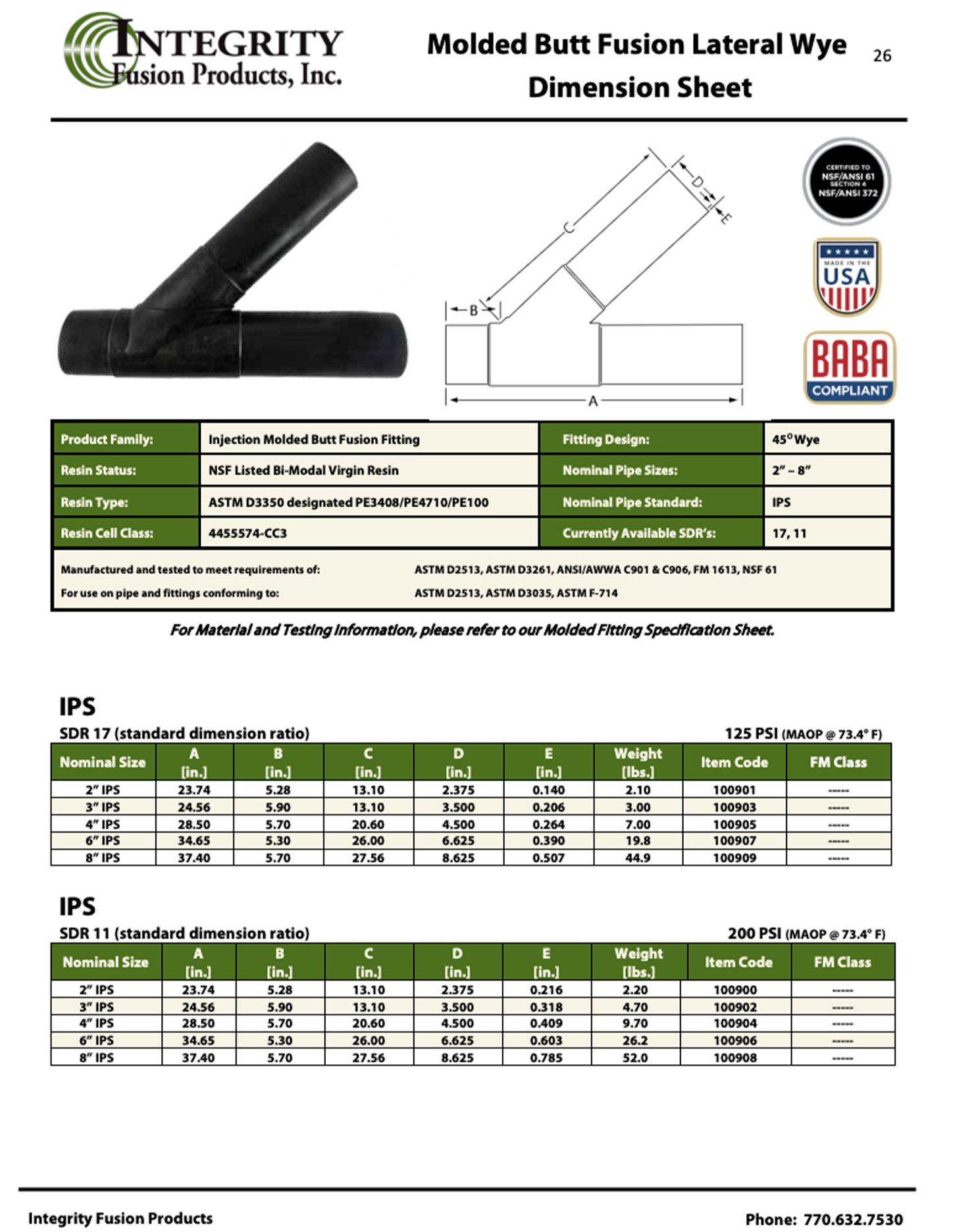

Product Spec Sheet
All prices are in USD
