2" IPS Stainless Steel 316 Flange Backup Ring

Hover over image to zoom

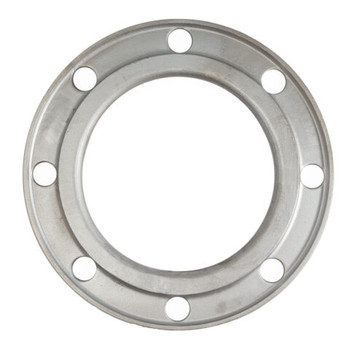

  • Stainless Steel 316 Backing Ring - Hdpe Flange Adapter Sold Separately
  • Stainless 316 Backing Ring Cross Section
Integrifuse
$68.08
SKU:
BURSS-2IPS-11
Shipping:
Calculated at checkout

 Product Description

2" IPS Stainless Steel 316 Backing Ring (Rated up to SDR11) 200psi

Backing Ring Only - For use with hdpe flange adpaters (Sold Separately)






Pipe Outside Flange Inside Bolt Dia. Bolt Radius Operating
Diameter Dia. Thickness Dia. Count Bolt Hole Circle r Pressure
  O.D. T I.D. N B.D. B.C.


2" 6 0.5 2.63 4 0.75 4.75 0.2 200
3" 7.5 0.53 3.75 4 0.75 6 0.28 200
4" 9 0.55 4.75 8 0.75 7.5 0.28 200
6" 11 0.63 6.88 8 0.88 9.5 0.28 200
8" 13.5 0.85 8.88 8 0.88 11.75 0.28 200
10" 16 0.98 11 12 1 14.25 0.31 200
12" 19 1.25 13.13 12 1 17 0.28 200



 Description Stainless Steel 316 Backup Ring
 Utilization Hdpe Pipe, Stainless Steel and Carbon Steel Stub Ends
 Materials Stainless Steel
 Dimensions Vital dimensions AWWA C207. Mates with all 150lb flanges, ANSI B16.5, B16.47; AWWA C207.
 Finish Bare 316 Stainless



Hdpe Flange Adapters are sold separately

Stainless Steel Rings are also available is sizes in excess of 18"
