10" Flanged Hdpe Check Valve

Hover over image to zoom

  • 10" Flanged Hdpe Check Valve
Calculated at checkout

 Product Description

10" Flanged Hdpe Check Valve

NOTE: Picture is for example only. This 10" Check Valve has qty12  1" Holes in each flange end. Standard ANSI 150# Flange Bolt Pattern.



  • Valve body is made of HDPE High Density Polyethylene.
  • The closing mechanism is designed to close a moment before the flow is reversed. This action decreases the loud hammering sound of water hammer. The Flap cannot Jam in the open position.
  • All the working mechanism is made of 316 Stainless Steel
  • The closing contact of the disc is performed by HDPE and rubber, eliminating wear and tear
  • The disc is made of extra durable HDPE, will not drip or stick
  • EPDM Rubber Seal with HDPE Flap Disc
  • The comprehensive design of the valve body allows a flow without restrictions
  • Regardless of the position in which you install, horizontal, vertical, or inclined, the check valve will operate normally and effectively
  • Easy inspection and maintenance due its simple design.
  • Maximum working pressure of 150 PSI (10.5 Bar)
  • Completely resistant all kinds of corrosion
  • Can be used as check of foot valve (check valve and screen) (Screen Strainer Sold Separately)

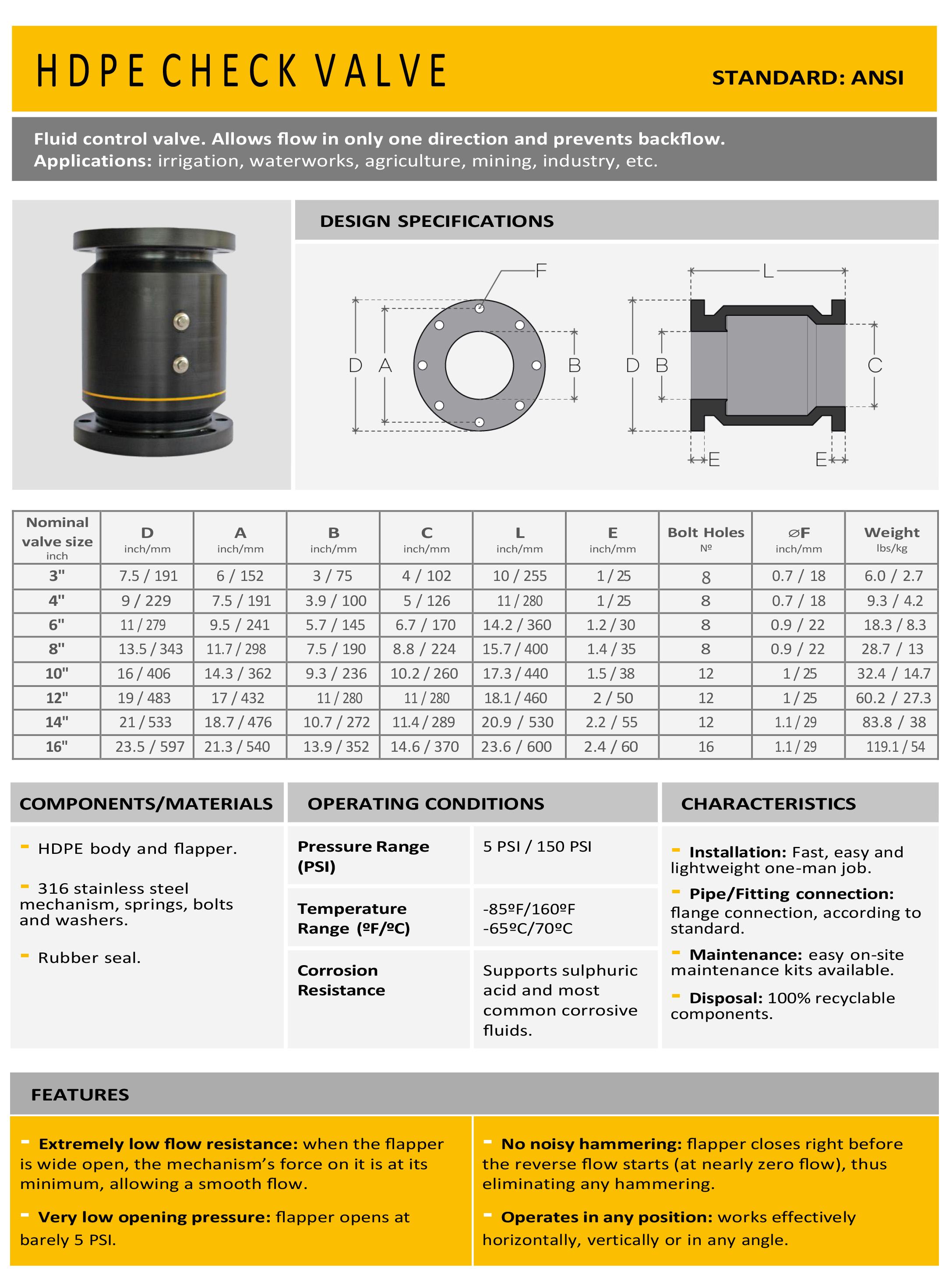

Spec Sheet

TermoPro Check Valve Friction Loss
