14" Flanged Hdpe Check Valve

Hover over image to zoom

  • 14" Flanged Hdpe Check Valve
  • Flanged Hdpe Check Valve and Strainer Screen Combination (Strainer Screen Sold Separately)
TERMOPRO
$925.00
SKU:
CVFL0140HDPE
Shipping:
Calculated at checkout

 Product Description

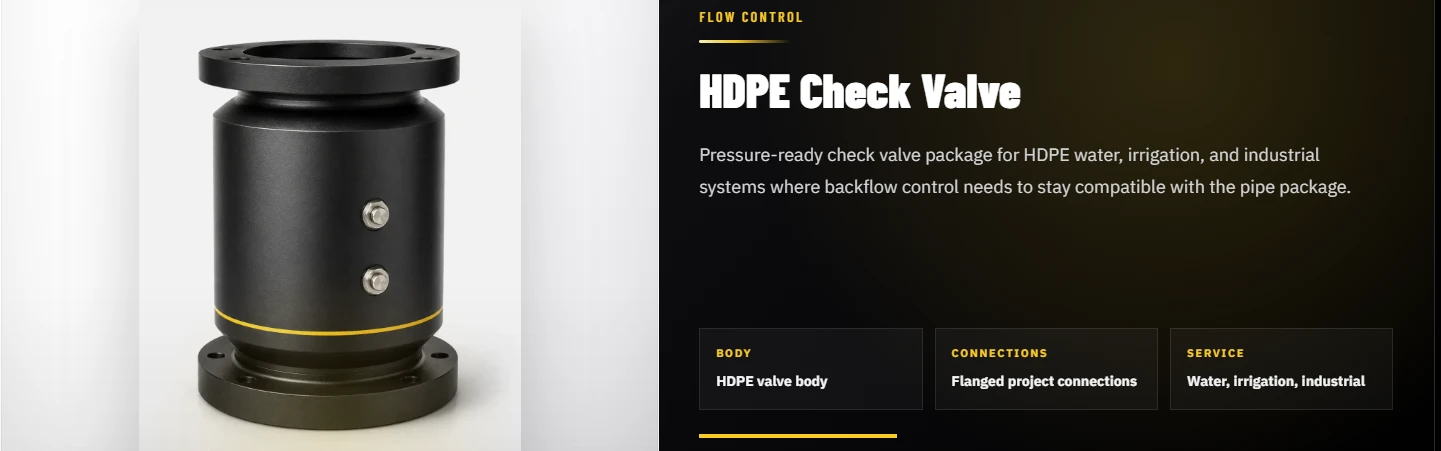

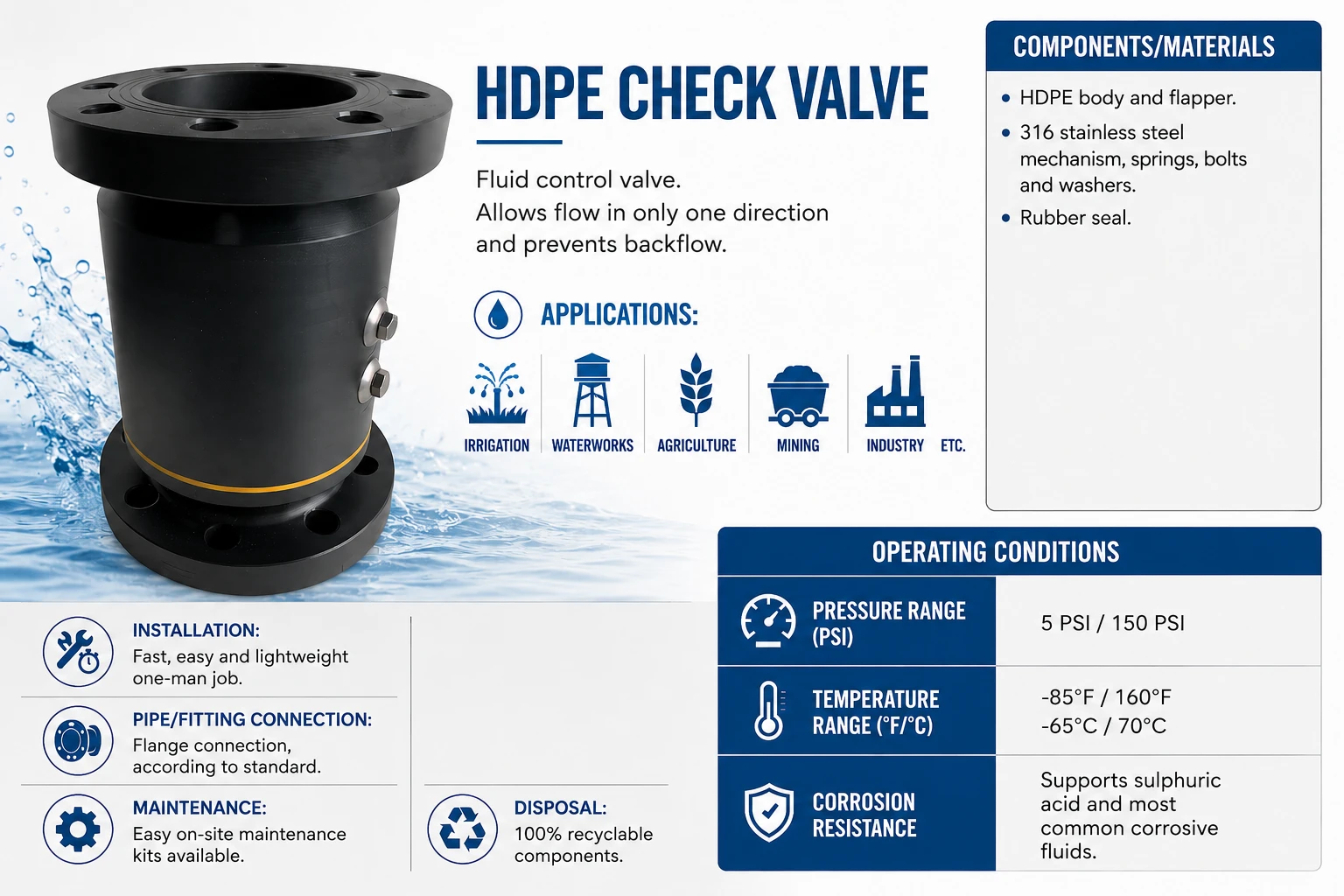

14" Flanged Hdpe Check Valve

NOTE: Picture is for example only. This 14" Check Valve has qty14  1" Holes in each flange end. Standard ANSI 150# Flange Bolt Pattern.



Standards:

  • Valve body is made of HDPE High Density Polyethylene.
  • The closing mechanism is designed to close a moment before the flow is reversed. This action decreases the loud hammering sound of water hammer. The Flap cannot Jam in the open position.
  • All the working mechanism is made of 316 Stainless Steel
  • The closing contact of the disc is performed by HDPE and rubber, eliminating wear and tear
  • The disc is made of extra durable HDPE, will not drip or stick
  • EPDM Rubber Seal with HDPE Flap Disc
  • The comprehensive design of the valve body allows a flow without restrictions
  • Regardless of the position in which you install, horizontal, vertical, or inclined, the check valve will operate normally and effectively
  • Easy inspection and maintenance due its simple design.
  • Maximum working pressure of 150 PSI (10.5 Bar)
  • Completely resistant all kinds of corrosion
  • Can be used as check of foot valve (check valve and screen) (Screen Strainer Sold Separately)



   Spec Sheet

Vendors Other Products

 Product Reviews

This product hasn't received any reviews yet. Be the first to review this product!
